Disposable Plasma Surgical Electrode

The disposable plasma surgical electrodes developed and produced by the company have various angle and structural designs, suitable for surgeries in multiple areas, enhancing the flexibility of surgical operations.
The electrodes are used in connection with radiofrequency and plasma surgical systems for cutting, ablation, and coagulation of tissues.

Classification:

Plasma Electrode

Key words:

Radio frequency high-frequency surgical system

Product accessories:

Product Consulting

Main parameters
Optional accessories
Main functions
Applicable departments

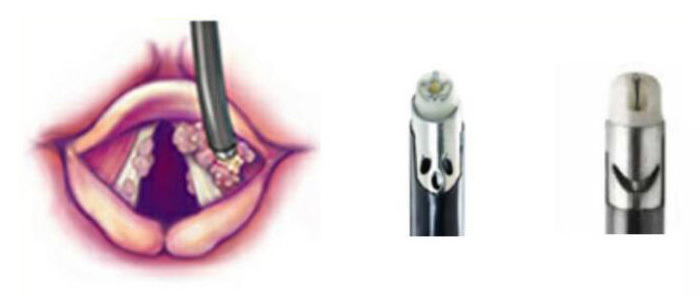

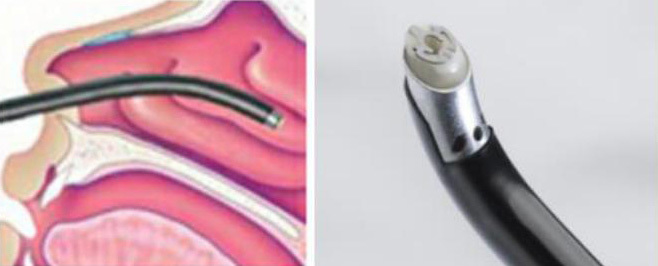

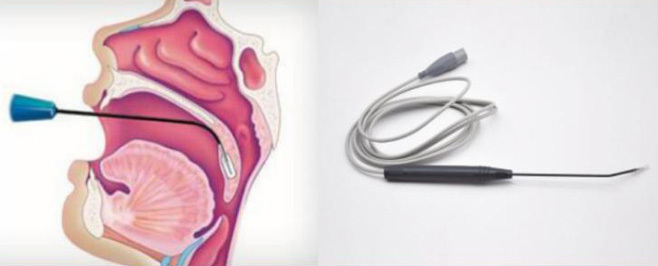

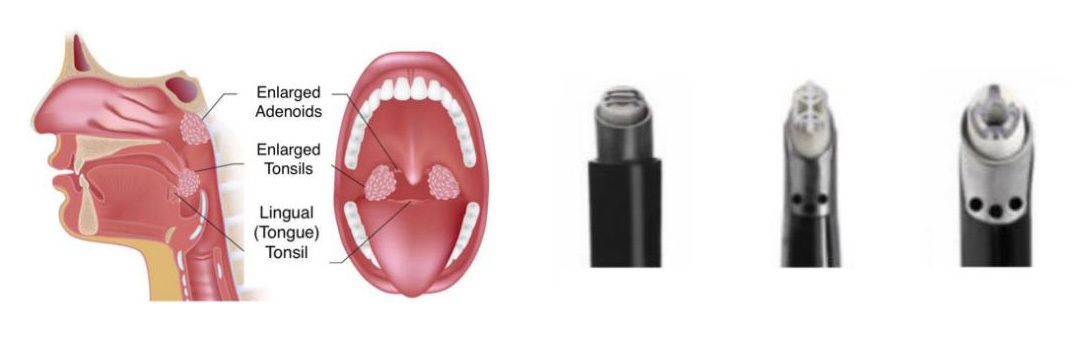

Clinical Application

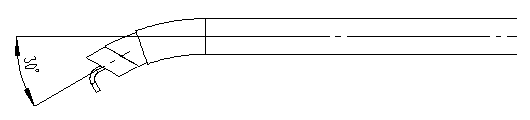

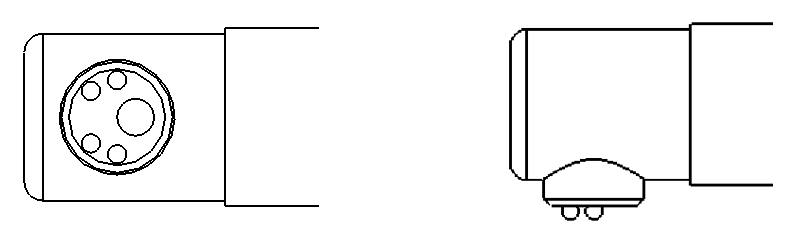

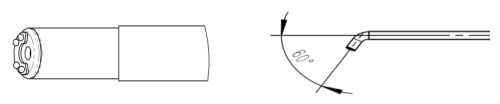

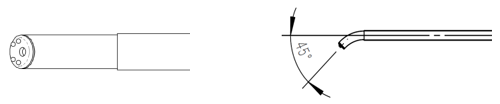

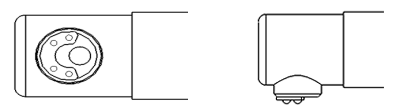

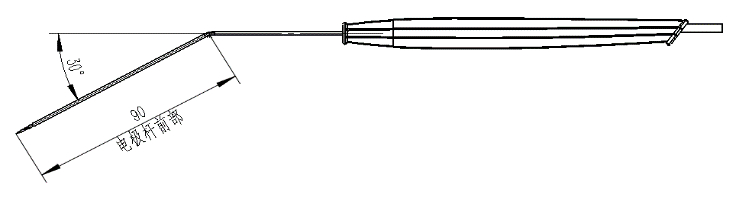

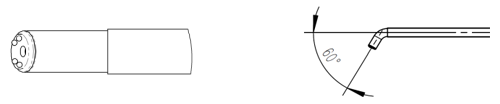

Disposable Plasma Surgical Electrode Models and Diagrams

Serial Number	Model	Working Part Type	Electrode Rod Angle (°)	Electrode Rod Total Length (mm)	Contains? Water Pipe	Schematic Diagram
1	C3030130	C-Cylindrical	30±2	130±2	No
2	C3090130	C-Cylindrical	30±2	130±2	No
3	C0000130	C-Cylindrical	0	130±2	No
4	C0000110	C-Cylindrical	0	110±2	No
5	C0000180	C-Cylindrical	0	180±2	No
6	C0000270	C-Cylindrical	0	270±2	No
7	H9000130	H-Horseshoe	90±2	130±2	Yes
8	H6010130	H-Horseshoe	60±2	130±2	Yes
9	H4510130	H-Horseshoe	45±2	130±2	Yes
10	P9000130	P-Dot	90±2	130±2	Yes
11	P6010130	P-Dot	60±2	130±2	Yes
12	P4510130	P-Dot	45±2	130±2	Yes
13	P0000130	P-Dot	0	130±2	Yes
14	U3010130	U-Hook	30±2	130±2	Yes

Product Advantages
- Using low-temperature plasma technology, it causes minimal damage to surrounding tissues and allows for quick recovery after surgery;
- With various designs of cutting heads, complete specifications, and wide applicability;
- Delicate angle and structural design, convenient for precise operation in small spaces;
- Not easy to adhere to tissues, can efficiently perform ablation and coagulation functions;
- Integrated cable design to prevent cross-contamination.
